High efficiency online double conversion technical

RM series use online double conversion technical, when the load reach 50%,efficiency >96%,when the load reach 25%,efficiency reach 95%,energy saving effect is good,it also can cut down the Total cost of ownership (TCO).



High scalability

DSP control provides a advanced high performance solve solution,Modular design and parallel technology, RM series can be easy to expanse Power in the future.



Complete output power factor

RM Series provides 1oo% output power (KVA=kilowatts),key load provides the maximum power capacity. It can satisfy the requirements of the latest server.

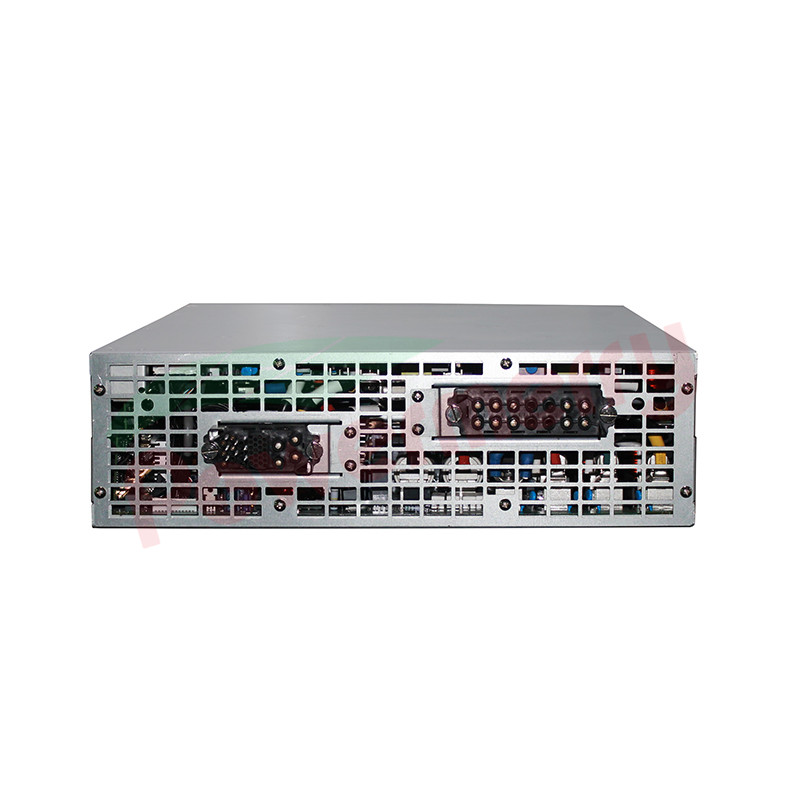

Modular design reduces average repair time

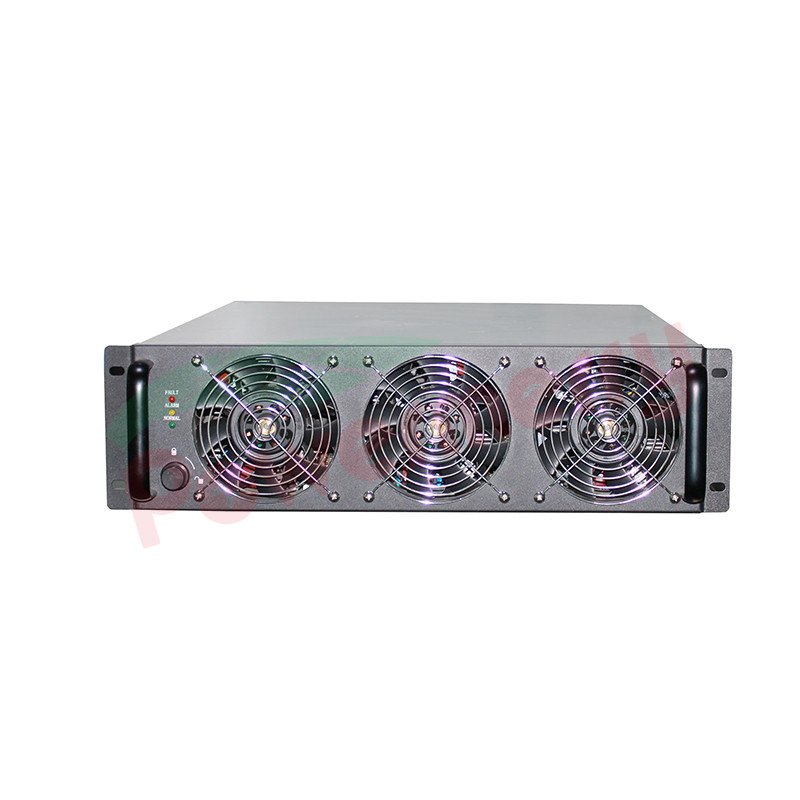

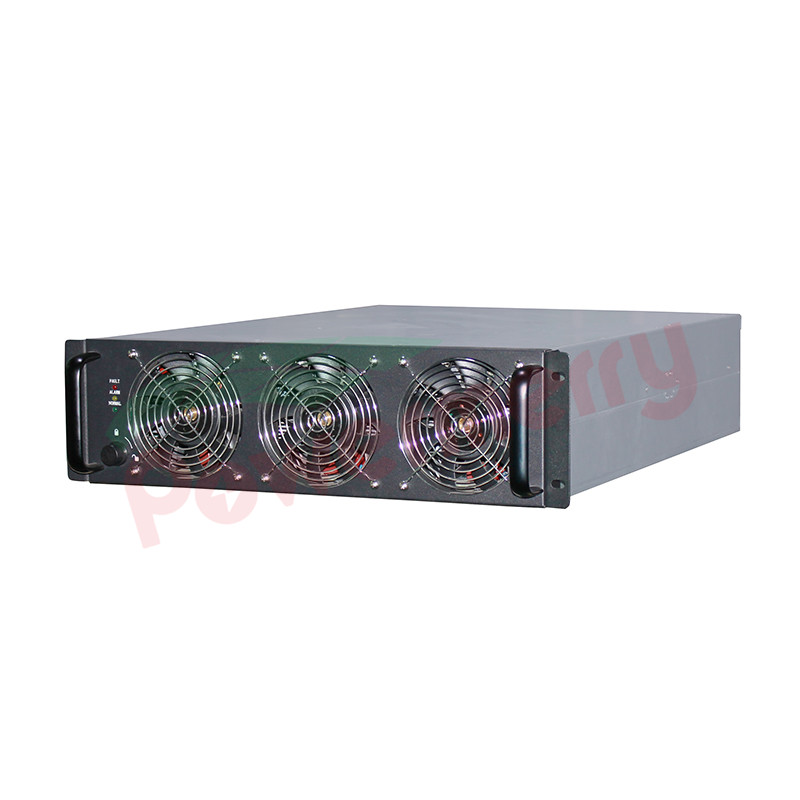

By using STS module, power modules and battery modules,it will make it simple to maintenance and updates and reduce the average repair time.



N + 1 or N + X parallel ensure power supply

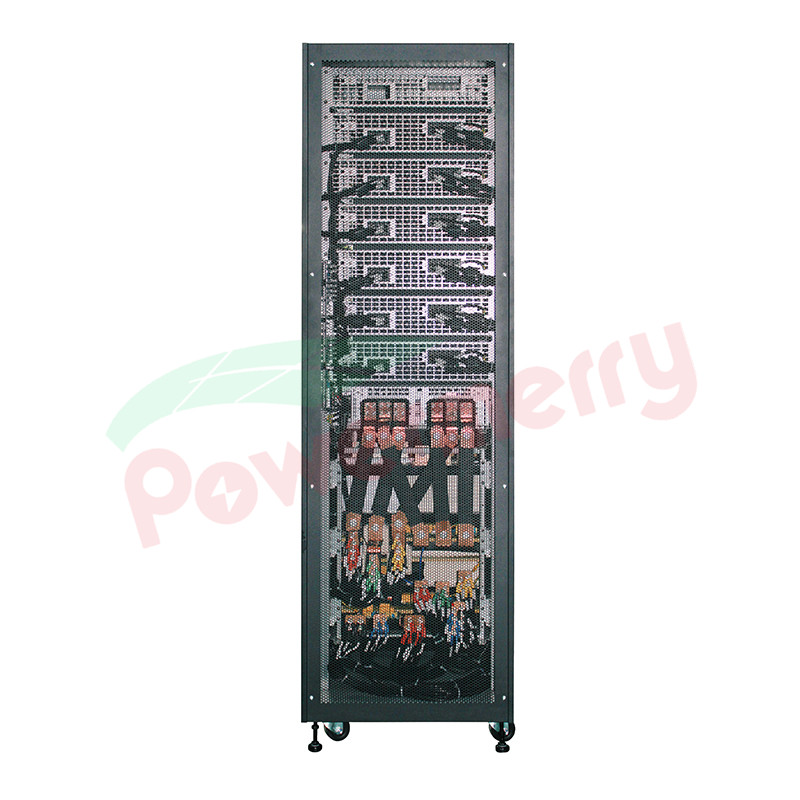

expand architecture can let you cut down cost, N + 1 or N + X technology can expand power requirement from 30kva to 300kva in a single rack.

Easy to install and maintain

The built-in maintenance bypass ensures that UPS can supply power for the load during maintenance all control panels and connectors are positive operation,in order to make it easy to install and maintain.



Flexible battery configurations is suitable for different applications

The number of batteries can be adjusted,It can adapt to different power requirements and shorten system down time The battery voltage can set from 32 to 40 per set.



The charge current can be adjusted

RM Series UPS can reach the Max charge current of 8A per power modular and can adjust based on the different requirements.



High overload capability

RM series <110% normal run60minutes,<120% 10minutes,<150%1 minute.

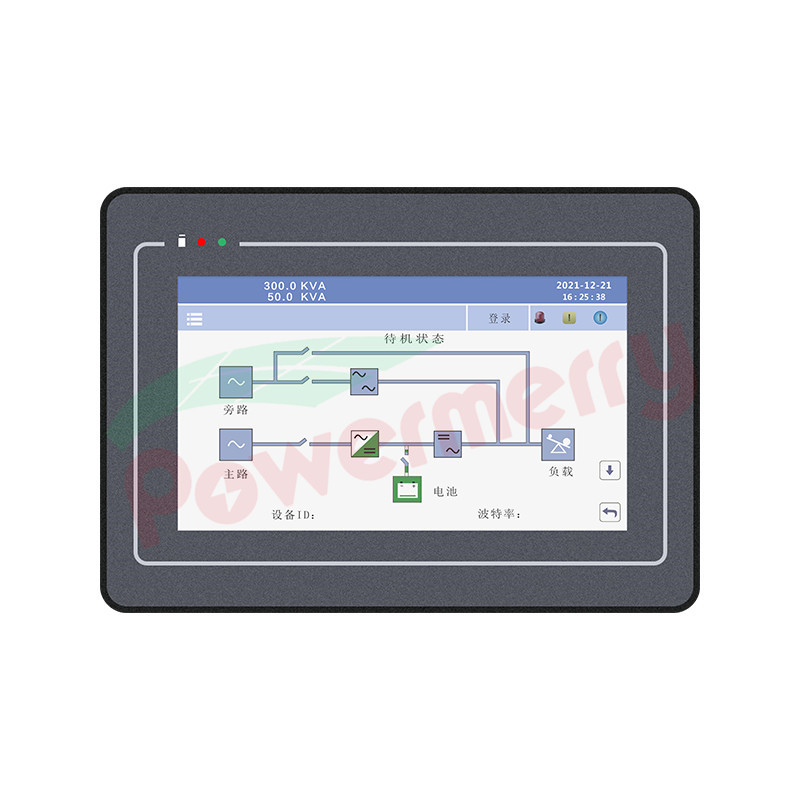

Easy to management with industrial grade LCD display

The Designed of RM series UPS is easy to management by using the industrial grade Lcd display.The intuitive design improves the recognition of display information.
