Product Features
All-in-One Integrated Design
Support PV , AC , Battery Connection
Works with or without Battery , Supports lead-acid battery or lithium battery.
PF0.99 High Efficiency Output
MPPT Charger Built -in
Parallel Operation
Parallel operation up to 9units;
Pure sine wave ;
Communication
Support : RS232 , USB / dry contact ;
Smart Protection & User-Friendly Control
Full protections against over/under voltage, overload, short circuit, overheating; LCD/LED display and remote monitoring available.
Wide Application & Parallel Support
Suitable for residential, industrial, and rural areas; many models support parallel expansion for higher power capacity.
0755-27198839

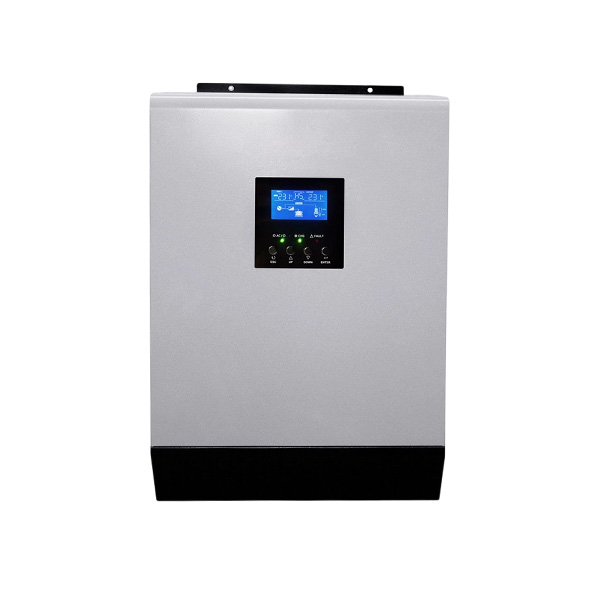

Off-grid inverter, support photovoltaic, mains, battery hybrid input;
DSP digital control, input PFC technology with power factor up to 0.99, high-efficiency inverter topology technology for high efficiency output and low self-energy consumption, output power factor is 1;
Configurable output source prioritization /charging source prioritization /battery charge current and discharge voltage value via LCD setting;
Configurable input voltage range for home appliance and personal computer via LCD setting;
High PV input voltage range 120-450Vdc;
Built-in 80A MPPT Solar charger and 80A AC charger;
Parallel operation up to 9 units;
Cold start function;
Over temperature/overload/short circuit protection;
Battery equalization function to optimize battery performance and extend life cycle;
Battery isolation design;
Pure sine wave output;
RS232/USB/Dry Contact communication port available;
Optional WIFI dongle for mobile monitoring (Android/IOS APP is available) and PC monitoring;
Built-in anti-dust kit;
| Model | MKSII 5K |
| Rated Power | 5000W |
| Parallel operation | Up to 9 units |
| AC Input | |
| Voltage | 230Vac |
| Voltage range | 170-280Vac(For personal computers) / 90-280Vac(Suitable for household appliances) |
| Frequency range | 50 Hz/60 Hz |
| Output Power | |
| AC voltage range (battery supply power) | 220Vac/230Vac/240Vac ±5%(Default230Vac) |
| Frequency | 50Hz/60Hz (Default50Hz) |
| Surge Power | 2*rate power lasts 5 seconds |
| Efficiency (peak) | 90%~93% |
| Transfer time | 10ms(AS UPS), 20ms (household appliance) |
| Over load protection | 5s@~150%loads; 10s@110%~150%loads |
| Output wave form | Pure sine wave |
| Battery | |
| Battery voltage | 48Vdc |
| Floating charging voltage | 54Vdc |
| Over charging protection | 66Vdc |
| PV power Charging and Utility Power charging | |
| PV input | MPPT |
| Maximum PV array open circuit voltage | 450Vdc |
| Maximum PV array power | 4500W |
| MPPT range@operating voltage | 120Vdc~430Vdc |
| MPPT rate voltage range | 320Vdc~430Vdc |
| Max solar charge current | 80A |
| MAX AC charge current | 80A |
| Max charge current | 80A |
| Inverter | |
| Size (D/W/H) | 125mmx310mmx480mm |
| Net Weight(Kg) | 11 |
| Communication port | USB/RS232/Dry Contact |
| Environment | |
| Operating temperature | -10℃~50℃ |
| Storage temperature | -15℃~60℃ |
| Relative humidity | 5%-95% (No condensation) |
| Standard | |
| Executive standard | CE |
