Product Features
All-in-One Integrated Design

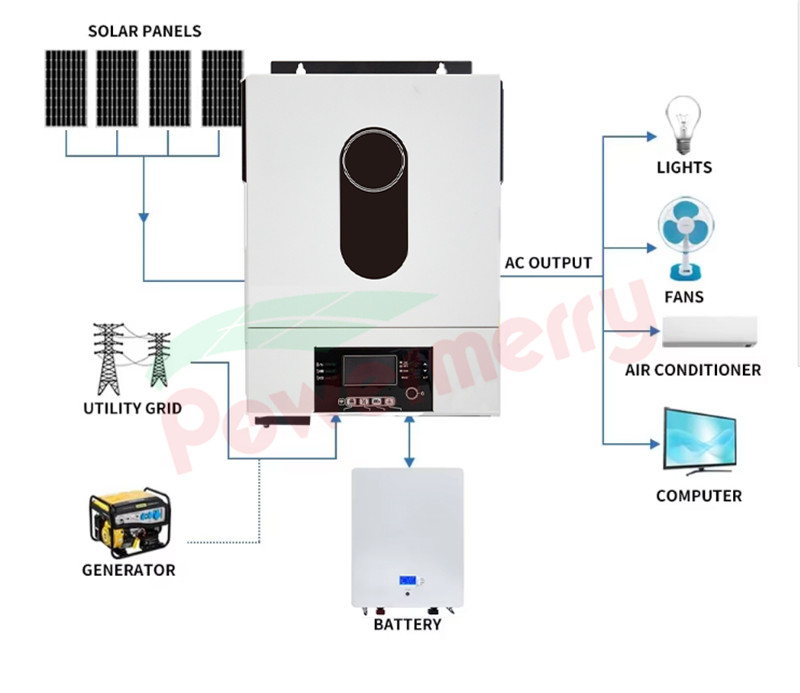

Support PV , AC , Battery Connection
Works with or without Battery , Supports grid-tie or off-grid operation, backup with batteries, compatible with lead-acid & lithium batteries.
PF0.99 High Efficiency Output
MPPT Charger Built -in
Pure sine wave ;
Communication
Support : RS232 ,BMS(Paineng), WiFi communication , USB / dry contact ;
Smart Protection & User-Friendly Control
Full protections against over/under voltage, overload, short circuit, overheating; LCD/LED display and remote monitoring available.
Wide Application & Parallel Support
Suitable for residential, industrial, and rural areas; many models support parallel expansion for higher power capacity.
0755-27198839

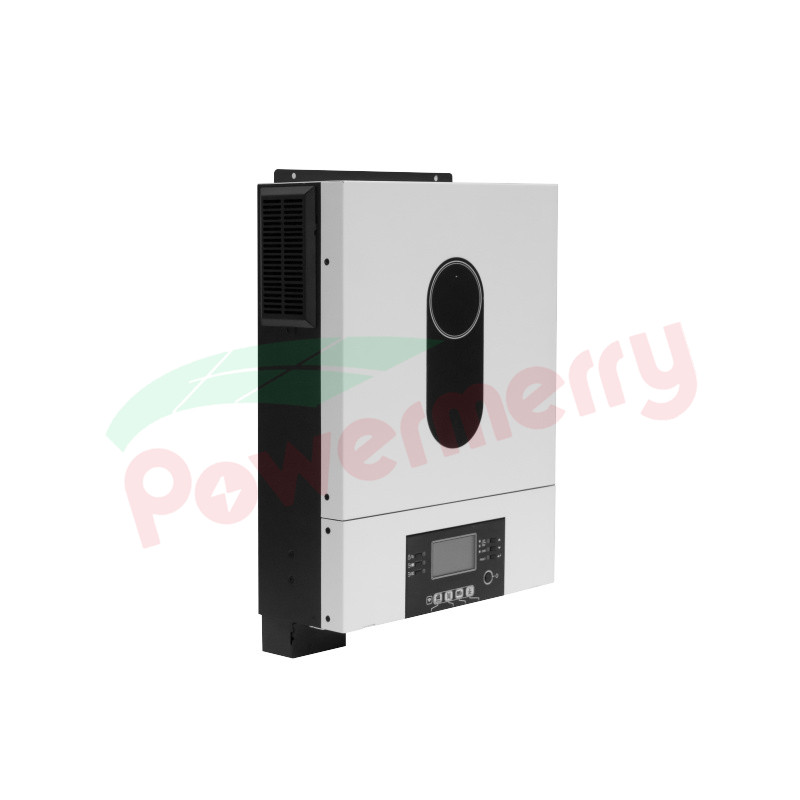

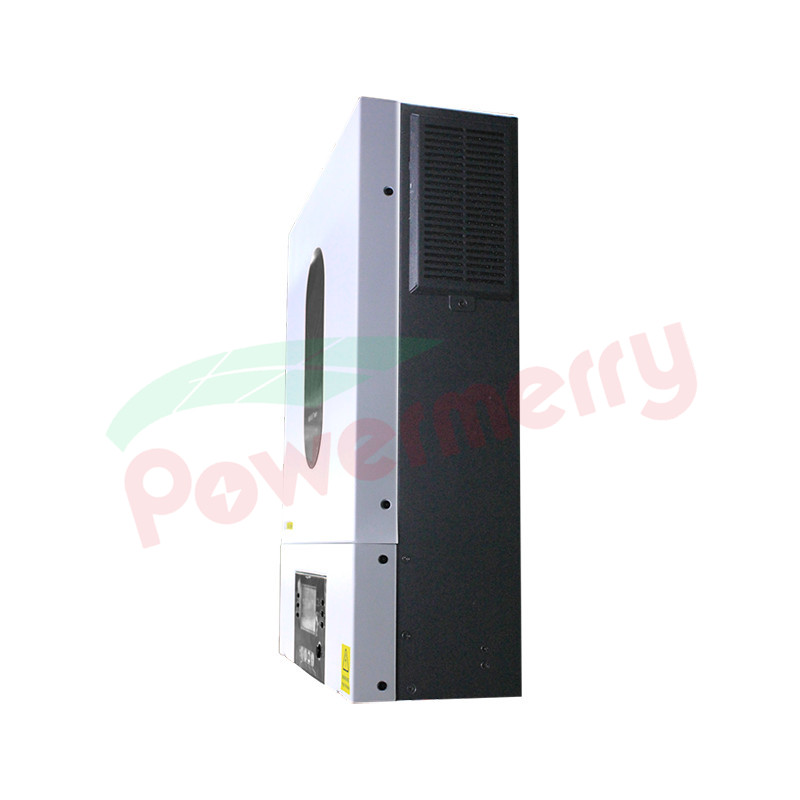

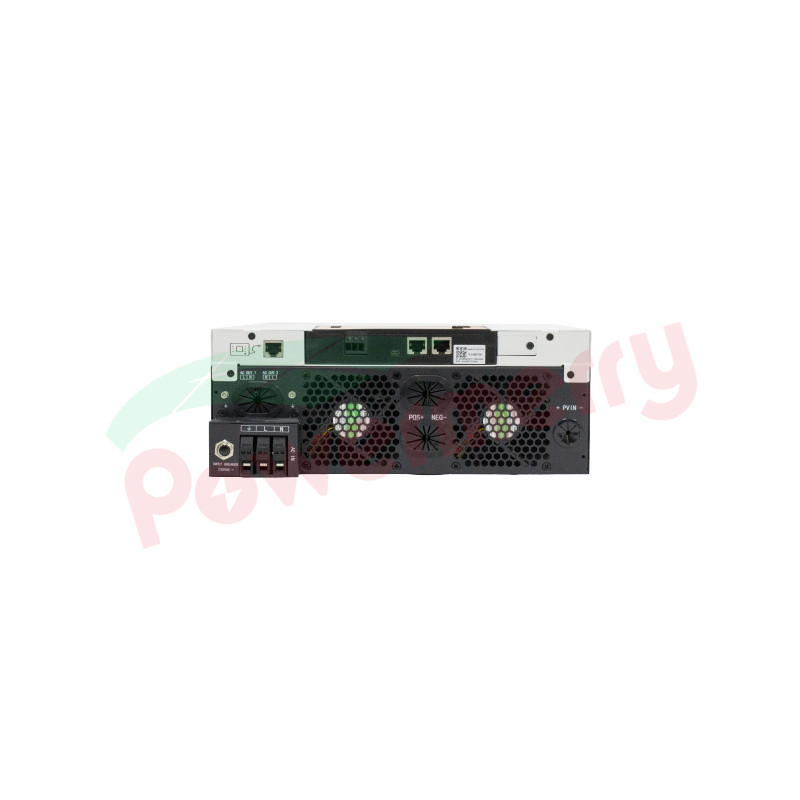

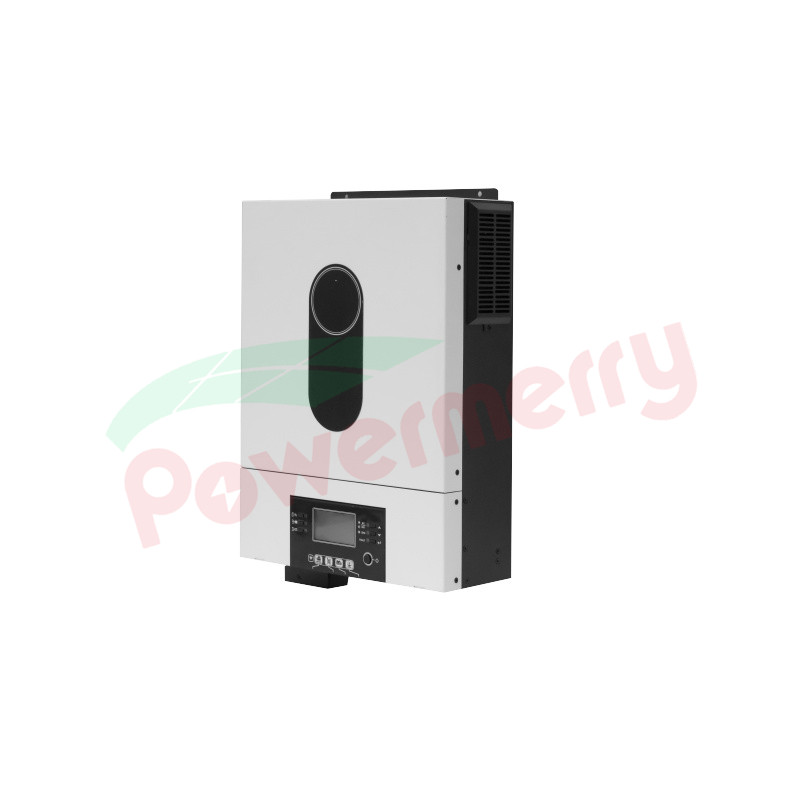

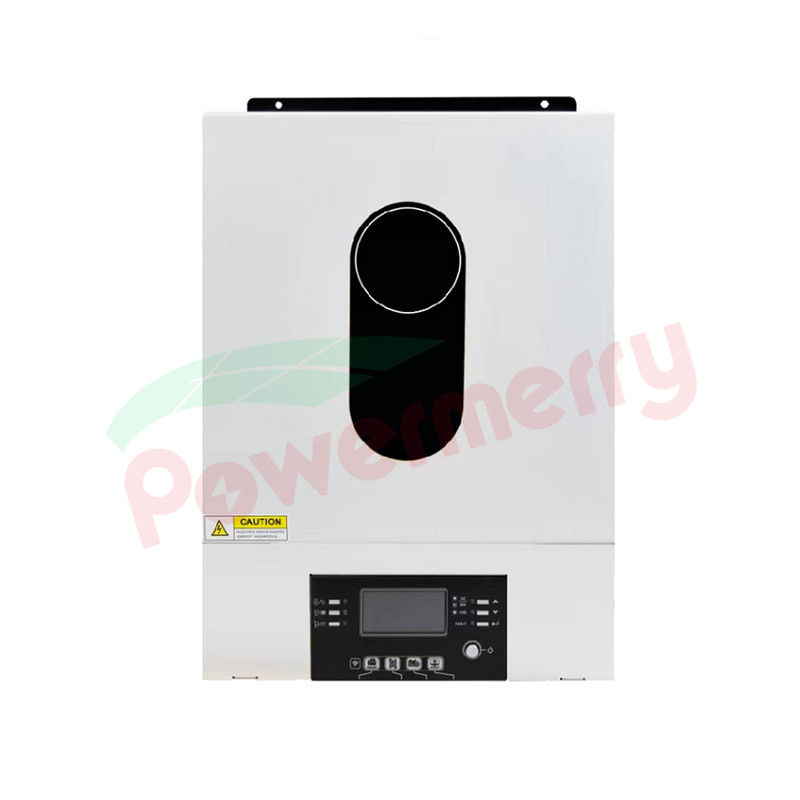

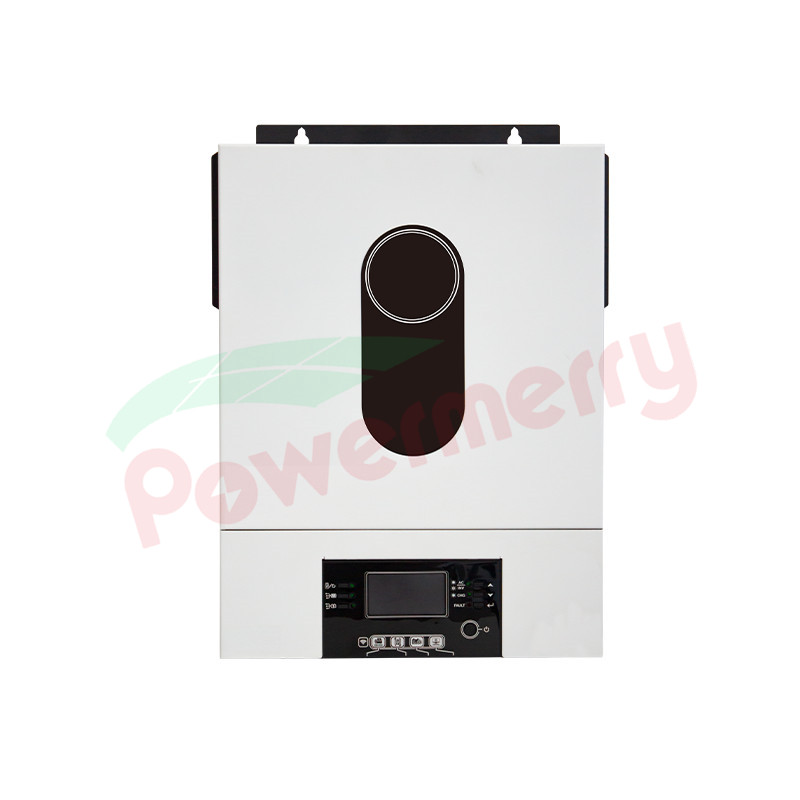

On/Of grid inverter with MPPT Built- in, supports PV power, Utility power and battery power;
DSP control and PFC technology, input power factor up to 0.99,High efficiency, low consumption,output power factor 1;
Output mode supports customization, Charging mode can be selected, the Voltage and current values of battery can be adjustable when it is charging and discharging;
Supports utility voltage adjustable, and and the different output power switching time;
PV input voltage range 60-450VDC;
Built-in MPPT,battery maximum charging current 120A, utility maximum charging current 100A;
Supports battery operation;
Supports over-temperature, overload and short-circuit protection;
Supports batteries balancing function to improve energy storage efficiency, optimize battery operation and extend cycle life;
The battery power adopts isolation design;
Pure Sine Wave;
Support dual output, it can be set to turn off the second output when the battery power is at the lower power that your setting;
Support review daily quantity of power generation and load power consumption;
Support Utility Power /generator power input.
Support BMS(RS485) RS232/USB/dry contact communications;
Wi-Fi built-in, supports mobile phone monitoring (Android/lOS APP available),
Support PC monitoring;
Built-in anti-dust kit;
With removable LCD display box,support remote review the PV inverter's working;

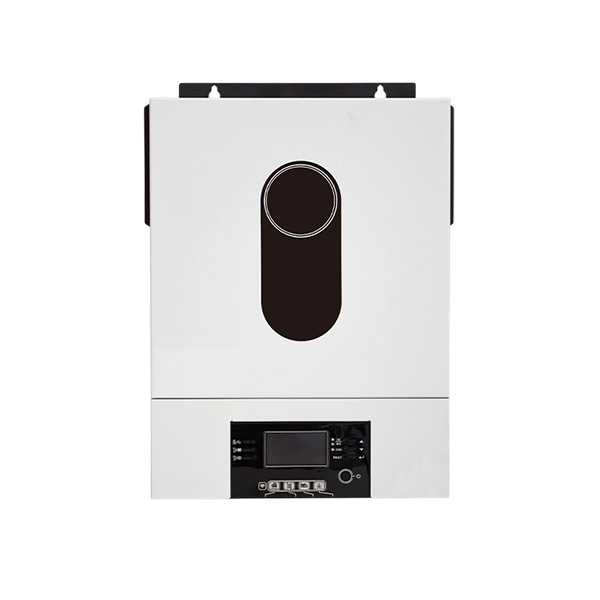

| Model | VM IV 4.2KW | VM IV 6.2KW |
| Rated Power | 4200VA/4200W | 6200VA/6200W |
| Parallel operation | Not supported | |
| AC Input | ||
| Voltage | 230Vac | |
| Voltage range | 170-280Vac(For personal computers) /90-280Vac(Suitable for household appliances) | |
| Frequency range | 50 Hz/60 Hz | |
| Output Power | ||
| AC voltage range (battery supply power) | 220Vac/230Vac/240Vac ±%(Default230Vac) | |
| Frequency | 50Hz/60Hz (Default50Hz) | |
| Surge Power | 2*rate power lasts 5 seconds | |
| Efficiency (peak) | 93% | |
| Transfer time | 10ms(AS UPS), 2Oms (household appliance) | |
| Over load protection | 5s@~110%loads;10s@105%~110%loads | |
| Output wave form | Pure sine wave | |
| Battery | ||
| Battery voltage | 24Vdc | 48Vdc |
| Floating charging voltage | 27Vdc | 54Vdc |
| Over charging protection | 33Vdc | 63Vdc |
| PV power Charging and Utility Power charging | ||
| PV input | MPPT | |
| Maximum PV array open circuit voltage | 500Vdc | |
| Maximum PV array power | 5000W | 6000W |
| MPPT range@operating voltage | 60-450Vdc | |
| MPPT rate voltage range | 320-450Vdc | 360-450Vdc |
| Max solar charge current | 120A | |
| MAX AC charge current | 120A | |
| Max charge current | 120A | |
| Inverter | ||
| Size (D/W/H) | 125mmX305mmX470mm | |
| Net Weight(Kg) | 9 | 10 |
| Communication port | USB/RS232/RS485/WiFi/Dry Contact | |
| Environment | ||
| Operating temperature | -10°℃~50°℃ | |
| Storage temperature | -15℃~60°℃ | |
| Relative humidity | 5%~95%(No condensation) | |
| Standard | ||
| Executive standard | CE | |
