Product Features
All-in-One Integrated Design
Support PV , AC , Battery Connection
Works with or without Battery , Supports grid-tie or off-grid operation, backup with batteries, compatible with lead-acid & lithium batteries.
PF0.99 High Efficiency Output
MPPT Charger Built -in
Parallel Operation
Parallel operation up to 9units;
Pure sine wave ;
Communication
Support : RS232 , USB / dry contact ;
Smart Protection & User-Friendly Control

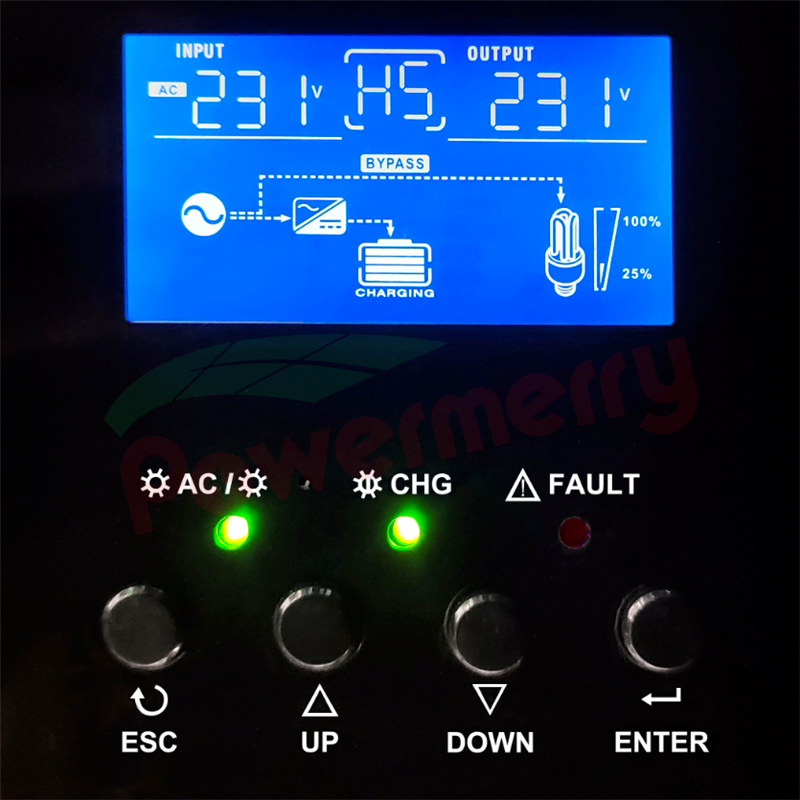

Full protections against over/under voltage, overload, short circuit, overheating; LCD/LED display and remote monitoring available.
Wide Application & Parallel Support
Suitable for residential, industrial, and rural areas; many models support parallel expansion for higher power capacity.
0755-27198839

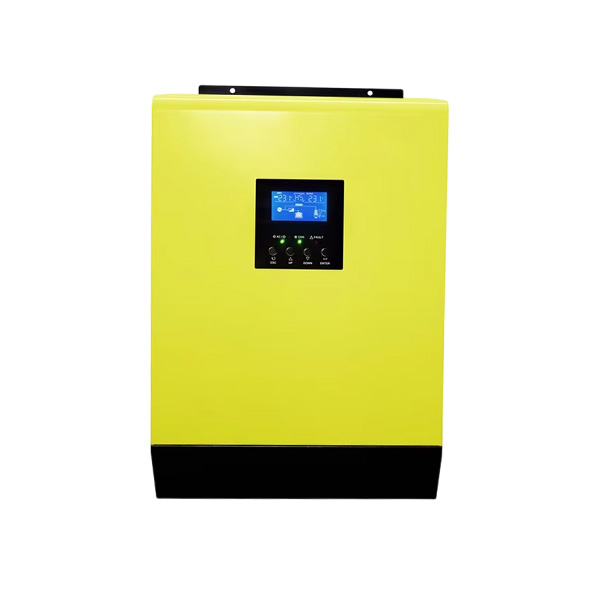

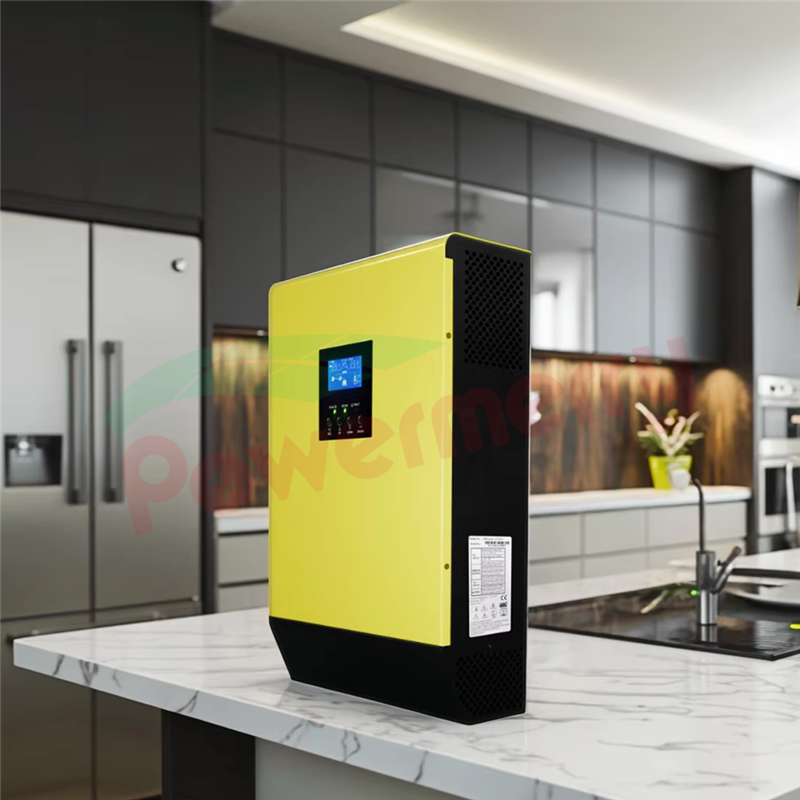

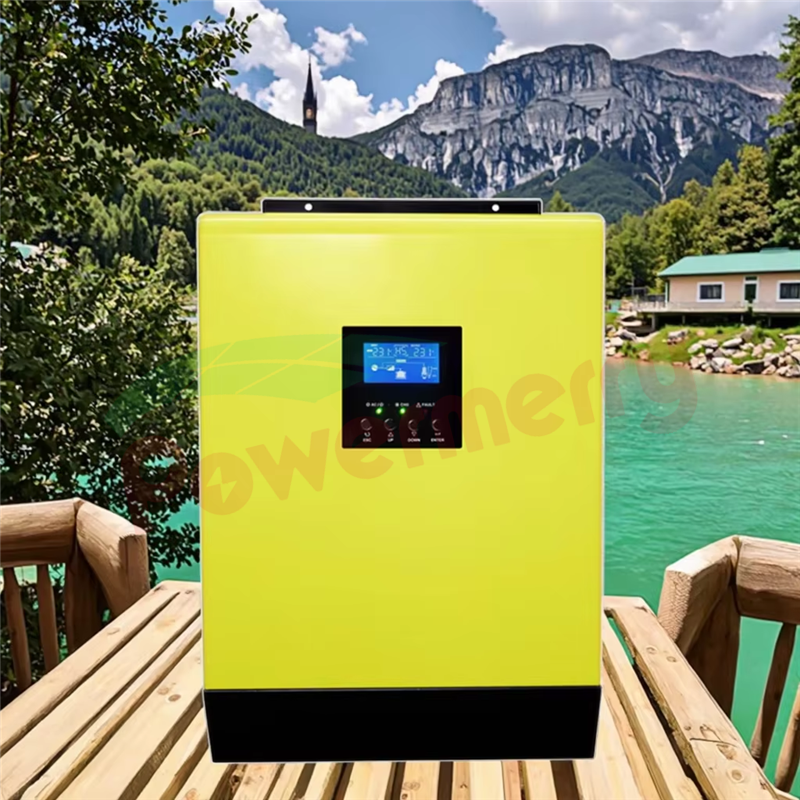

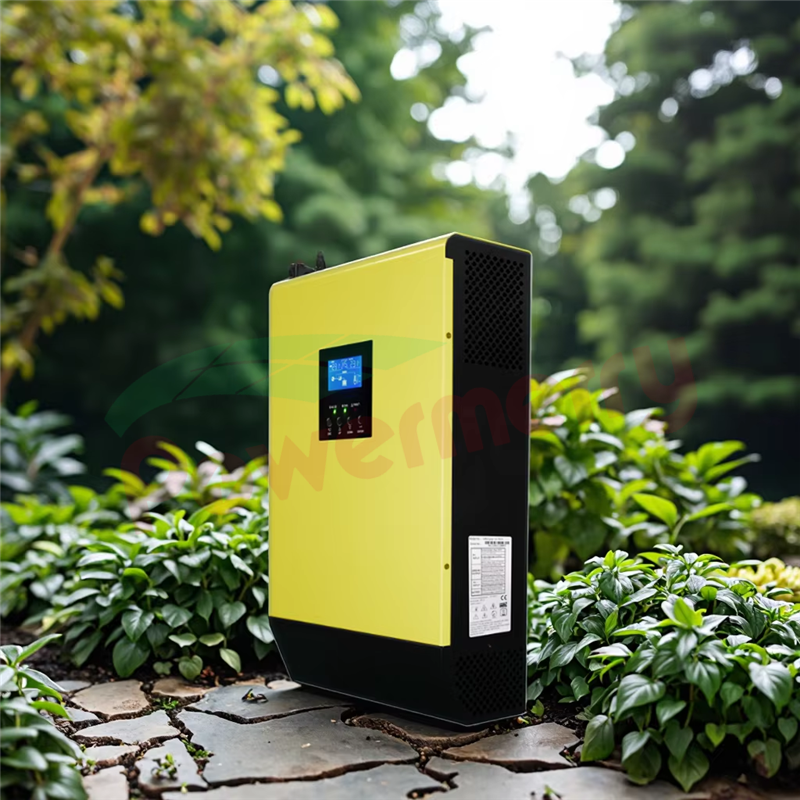

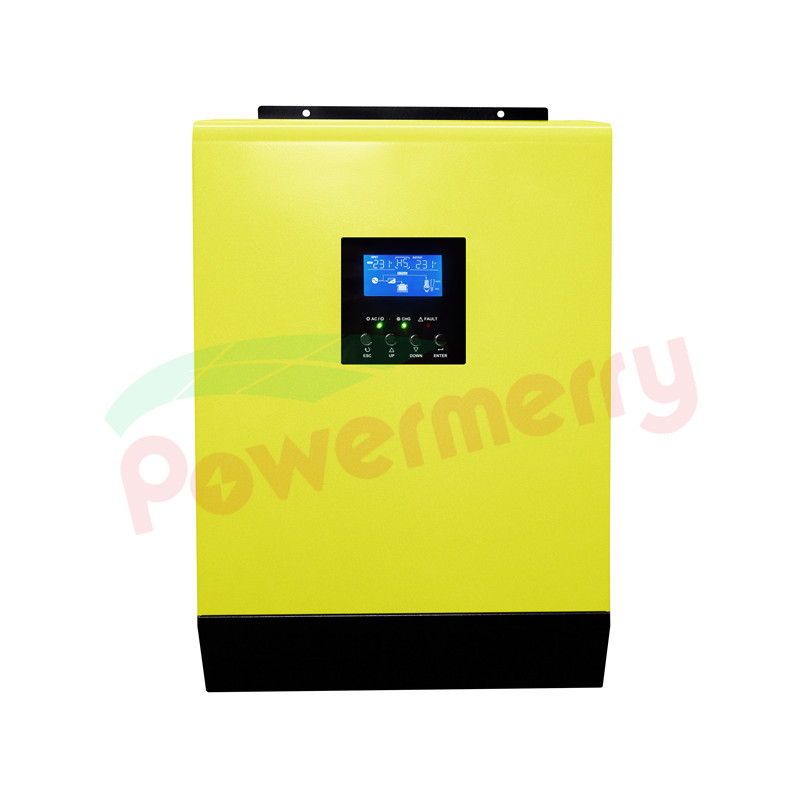

On/Off grid inverter with MPPT Built- in,supports PV power, Utility power and battery power;
DSP control and PFC technology,input power factor up to 0.99,High efficiency, low consumption,output power factor 1;
Output mode supports customization, Charging mode can be selected, the Voltage and current values of battery can be adjustable when it is charging and discharging;
Supports utility voltage adjustable,and and the different output power switching time;
PV input voltage range 120-430vDC;
Built-in MPPT,battery maximum charging current 80A, utility maximum charging current 80A;
Supports 9 units in parallel operation;
Supports battery operation;
Supports over-temperature, overload and short-circuit protection;
Supports batteries balancing function to improve energy storage efficiency, optimize battery operation and extend cycle life;
The battery power adopts isolation design;
Pure Sine Wave;
Support review daily quantity of power generation and load power consumption;

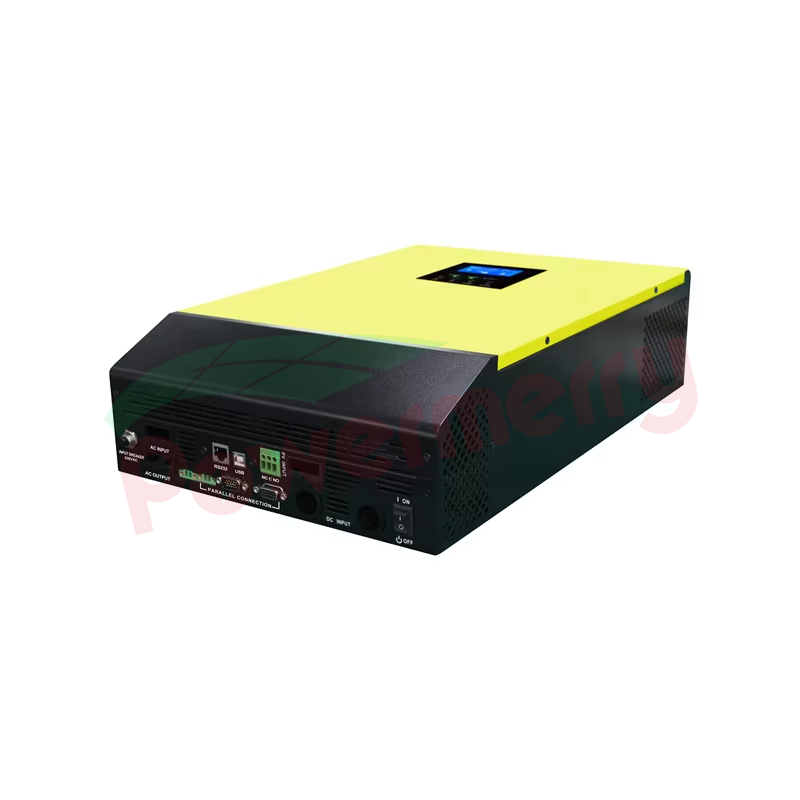

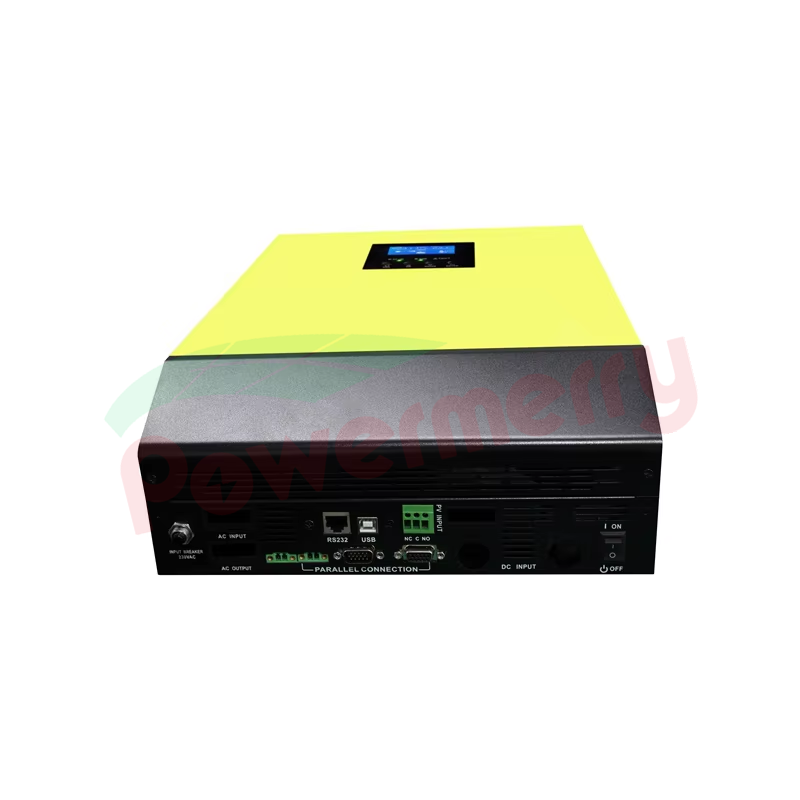

Supports RS232/USB/dry contact communication;
Optional Wi-Fi modular, supports mobile phone monitoring (Android/IOS APP available),Support PC monitoring;
Built-in anti-dust kit;
| Model | VII 5K |
| Rated Power | 5000VA/5000W |
| Parallel operation | Up to 9 units |
| AC Input | |
| Voltage | 230Vac |
| Voltage range | 170-280Vac(For personal computers) /90-280Vac(Suitable for household appliances) |
| Frequency range | 50 Hz/60 Hz |
| Output Power | |
| AC voltage range(battery supply power） | 220Vac/230Vac/240Vac ±5%(Default230Vac) |
| Frequency | 50Hz/60Hz (Default50Hz) |
| Surge Power | 2*rate power lasts 5 seconds |
| Efficiency (peak) | 93% |
| Transfer time | 10ms(AS UPS）,2Oms (household appliance) |
| Over load protection | 5s@≥150%loads;10s@110%~150%loads |
| Output wave form | Pure sine wave |
| Battery | |
| Battery voltage | 48Vdc |
| Floating charging voltage | 54Vdc |
| Over charging protection | 66Vdc |
| PV power Charging and Utility Power charging | |
| PV input | MPPT |
| Maximum PV array open circuit voltage | 450Vdc |
| Maximum PV array power | 4500W |
| MPPT range@operating voltage | 120Vdc~430Vdc |
| MPPT rate voltage range | 320Vdc~430Vdc |
| Max solar charge current | 80A |
| MAX AC charge current | 80A |
| Max charge current | 80A |
| Inverter | |
| Size (D/W/H) | 125mmx310mmx480mm |
| Net Weight(Kg) | 12 |
| Communication port | USB/RS232/Dry Contact |
| Environment | |
| Operating temperature | -10°℃~50°℃ |
| Storage temperature | -15℃~60°℃ |
| Relative humidity | 5%~95%(No condensation) |
| Standard | |
| Executive standard | CE |
