Product Features
Main Features
All-in-One Integrated Design
Support PV , AC , Battery Connection
Works with or without Battery , Supports grid-tie or off-grid operation, backup with batteries, compatible with lead-acid & lithium batteries.
PF0.99 High Efficiency Output
MPPT Charger Built -in
Parallel Operation
Parallel operation up to 9units;
Pure sine wave ;
Communication
Support : RS232 ,BMS(Paineng), WiFi communication , USB / dry contact ,
Smart Protection & User-Friendly Control
Full protections against over/under voltage, overload, short circuit, overheating; LCD/LED display and remote monitoring available.
Wide Application & Parallel Support
Suitable for residential, industrial, and rural areas; many models support parallel expansion for higher power capacity.
0755-27198839
Built-in MPPT,supports PV,utility/generator and battery hybrid power input
DSP control and PFC technology, PF1.0;
Customized output mode,selected charging mode;
Charging and discharging voltage and current adjustable;
Support over-temperature,over load and short-circuit protection;
Parallel operation up to 9 units (45KW)
Pure Sine Wave;
Support review daily quantity of power generation and load power consumption;
Built-in anti-dust kit;

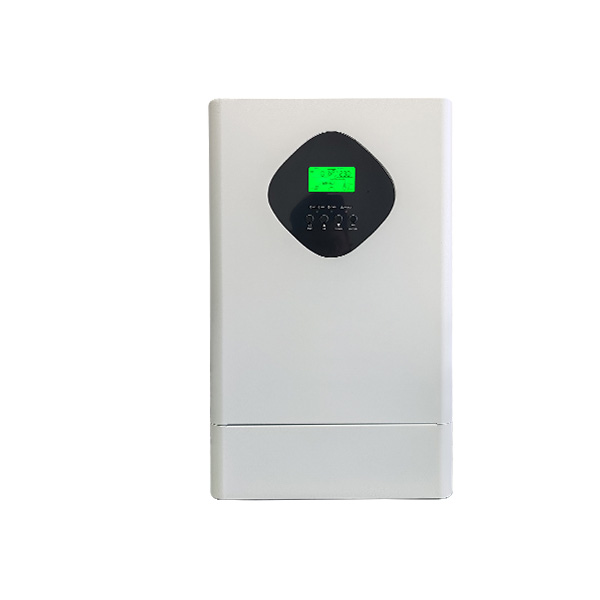

| Model | VIII 5K |
| Rated Power | 5000VA/5000W |
| Parallel operation | Up to 9 units |
| AC Input | |
| Voltage | 230Vac |
| Voltage range | 170-280vac(For personal computers)/90-280vac(Suitable for household appliances) |
| Frequency range | 50 Hz/60 Hz |
| Output Power | |
| AC voltage range (battery supply power) | 220Vac/230Vac/240Vac 士5%（Default230Vac) |
| Frequency | 50Hz/60Hz(Default50Hz) |
| Surge Power | 2*rate power lasts 5 seconds |
| Efficiency (peak) | 93% |
| Transfer time | 10ms(AS UPS), 20ms (household appliance) |
| Over load protection | 5s@≥150%loads;10s@110%~150%loads |
| Output wave form | Pure sine wave |
| Battery | |
| Battery voltage | 48VDC |
| Floating charging voltage | 54VDC |
| Over charging protection | 66VDC |
| PV power Charging and Utility Power charging | |
| PV input | MPPT |
| Maximum PV array open circuit voltage | 450VDC |
| Maximum PV array power | 4500W |
| MPPT range@operating voltage | 120Vdc~430VDC |
| MPPT rate voltage | >320VDC |
| PV start-up Voltage | 60VDC |
| Max solar charge current | 80A |
| MAX AC charge current | 80A |
| Max charge current | 80A |
| Inverter | |
| Size (D/W/H) | 125mmx310mmx480mm |
| Net Weight(Kg) | 12 |
| Communication port | USB/RS232/Dry Contact |
| Environment | |
| Operating temperature | -10°C~50°℃ |
| Storage temperature | -15°C~60°℃ |
| Relative humidity | 5%~95%(No condensation) |
| Standard | |
| Executive standard | CE |
