Product Features
Excellent microprocessor control optimizer reliability
Built super smart charger,shorten charging time
Boost and buck AVR for voltage stabilization
Simulated sine wave
Auto restart while AC is recovering
Power-on self test
Built-in self-diagnostic function
Off mode charging function
Intelligent battery management
Optional no-load shut down
Humanized alarm system
Compatible with generator set (optional)
Optional RS232/USB communication port and RJ11/RJ45 protection
0755-27198839

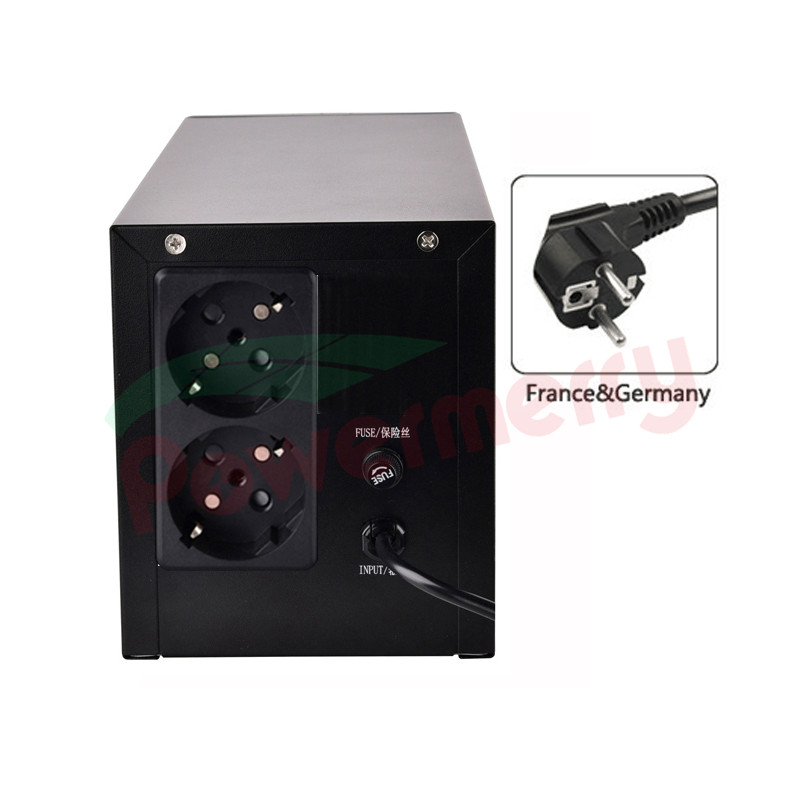

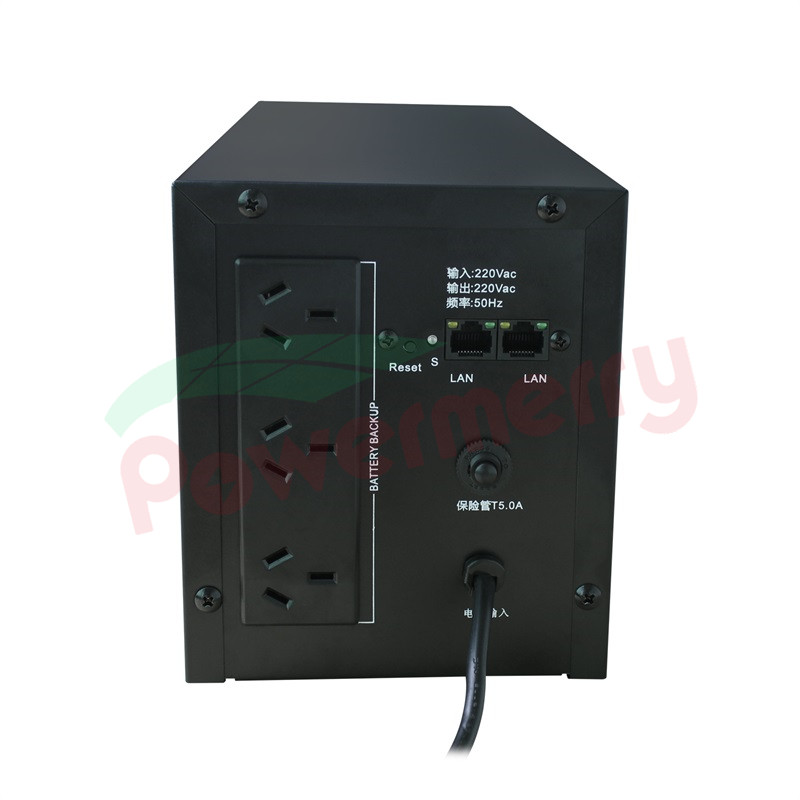

Rear Panel
AC input

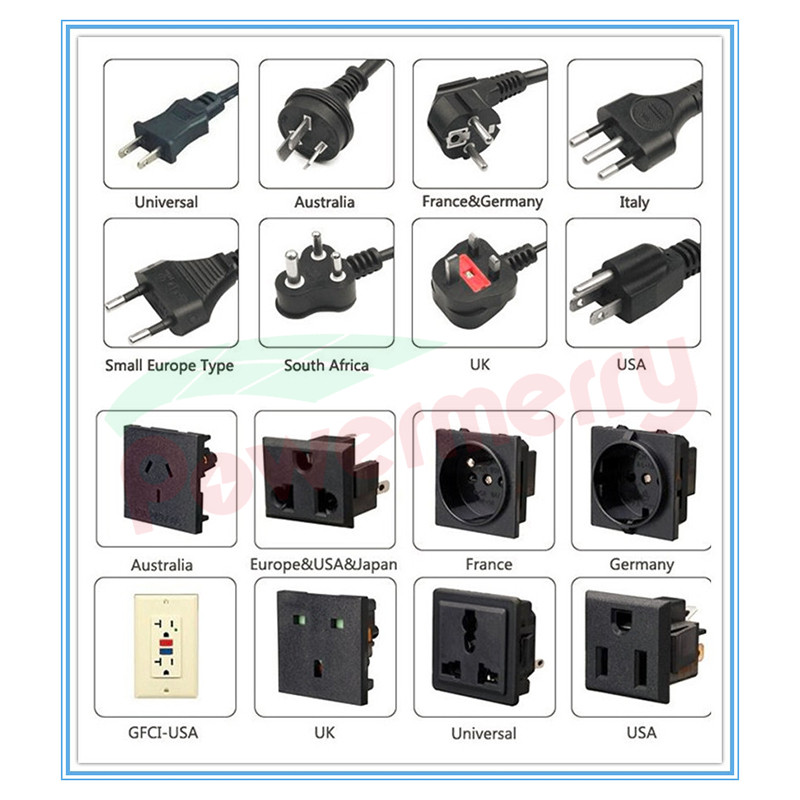

Output socket(selectable)
TEL/Modem/Fax surge protection (RJ11/RJ45) (optional)
USB/RS232 communication (optional)
AC Fuse/Breaker (optional)
| Item No | MT450 | MT650 | MT850 | MT1000B | MT1000 | MT1200 | MT1500 | MT2000 |
| Capacity | 450VA/240W | 650VA/360W | 850VA/480W | 1000VA/600W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W |
| Materials | Plastic | Metal | ||||||
| Input | ||||||||
| Voltage | 110/120VAC or 220/230/240VAC | |||||||
| Voltage Range | 86-230 VAC or 140-285 VAC | |||||||
| Frequency Range | 60/50Hz (Auto sensing） | |||||||
| OUTPUT Voltage | 110/120VAC or 220/230/240VAC | |||||||
| AC Voltage Ragulation (Bat Mode) | ±10% | |||||||
| Frequency Range(Bat Mode) | 60Hz or 50Hz±1Hz | |||||||
| Transfer time | Typical 2－6ms | |||||||
| Waveform(Bat Mode) | Simulated Sinewave | |||||||
| Power factor | 0.6 | |||||||
| Battery | ||||||||
| Battery Type&Numeber | 12V4.5Ah*1 | 12V7Ah*1 | 12V9Ah*1 | 12V 9Ah*1 | 12V 7Ah*2 | 12V 9Ah*2 | ||
| Floating Charging Voltage | 13.7VDC | 27.4VDC | ||||||
| Charging ability | 4-6 hours recover to 90% capacity | |||||||
| Offline charging | Yes | |||||||
| Cold start | Yes | |||||||
| Protection | ||||||||
| Full protection | Overload, short circuit, discharge, and overcharge protection | |||||||
| Led Indications | ||||||||
| Line mode | Green lighting | Green lighting | ||||||
| Battery mode | Flashing every 4 second | Red lighting | ||||||
| Charging | Yellow lighting | |||||||
| Fault | Green lighting | Red lighting | ||||||
| Sound Alarm | ||||||||
| Battery mode | sound every 4 second | sound every 4 second | ||||||
| Low battery | sound every 1 second | sounding every 1 second | ||||||
| Fault | Keep sounding | Keep sounding | ||||||
| Dimension(LxWxH)mm | 280x100x140 | 380x123x193 | ||||||
| Net Weight(kgs) | 3.35 | 4.25 | 4.9 | 4.9 | 9.3 | 9.68 | 11.6 | 12.5 |
| Environment | ||||||||
| Humidity | 0-90% Relative Humidity 0-40°C (Non-condending) | |||||||
| Noisy Level | Less than 40dB | |||||||
| Remarks | ||||||||
| Weight per box | 3.67 | 4.6 | 5.15 | 5.15 | 9.63 | 10.36 | 12 | 13.2 |
| Box size | 325x140x220mm | 460x225x300mm | ||||||
| Qt'y per marster carton | 4pcs | 2pcs | ||||||
| Marster Carton Size | 335x300x460mm | 460x430x260mm | ||||||
| NW/kgs | 14.9 | 17 | 19.6 | 19.6 | 18.6 | 19.36 | 23.2 | 25 |
| GW/kgs | 15.5 | 18.4 | 20.6 | 20.6 | 19.25 | 20.06 | 23.95 | 25.7 |
| Container quantity 20FT | 1x20’ | |||||||
| 2200pcs | 1000pcs | |||||||
| Container quantity 40HQ | 1x40’ | |||||||
| 4500pcs | 2000pcs | |||||||
